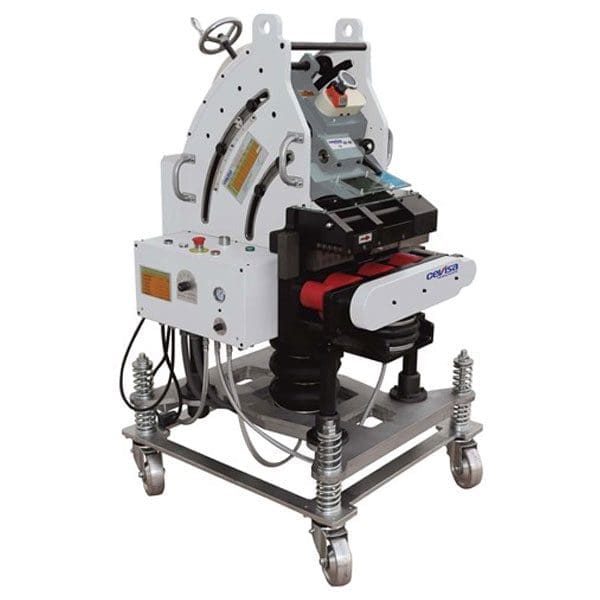

Sheet beveling machine CHP-60G specifications

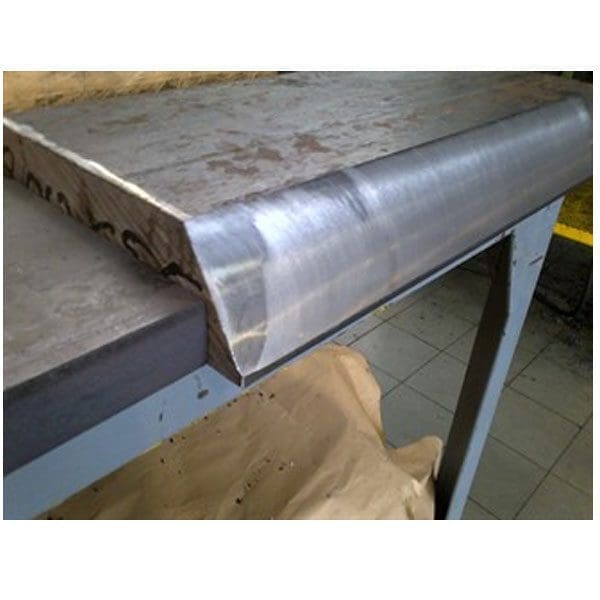

The MILLING machine for sheetplates/strips model CHP-60G mills with carbide inserts a bevel to a plate (or plate piece). The milling tool rotates with appr. 550 r.p.m. and has a separate drive for the feed of the material or transport of the machine along the sheet. The milling tool is dia. 80 mm. with 7 inserts.

  • Beveling with AUTO-feeding of the plate or along the plate.
  • Maximum beveling length of 60 mm.
  • Sheet thickness 10 -70 mm. / 100 mm.
  • Angular position 15° till 70° adjustable.
  • Working height 750-950 mm.
  • Mills the bevel with carbide inserts.

Extensive information

For more information about our products, please contact us . We offer a wide overview of brochures and photo material for orientation.
We also develop customized 'specials', in line with your wishes and requirements.
Discover the possibilities of our products and come without obligation to contact with us. Contact us or request a quote .
