Sheet beveling machine CHP-30G specifications

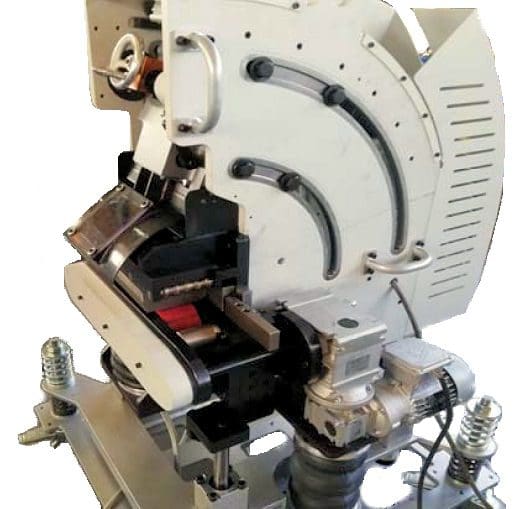

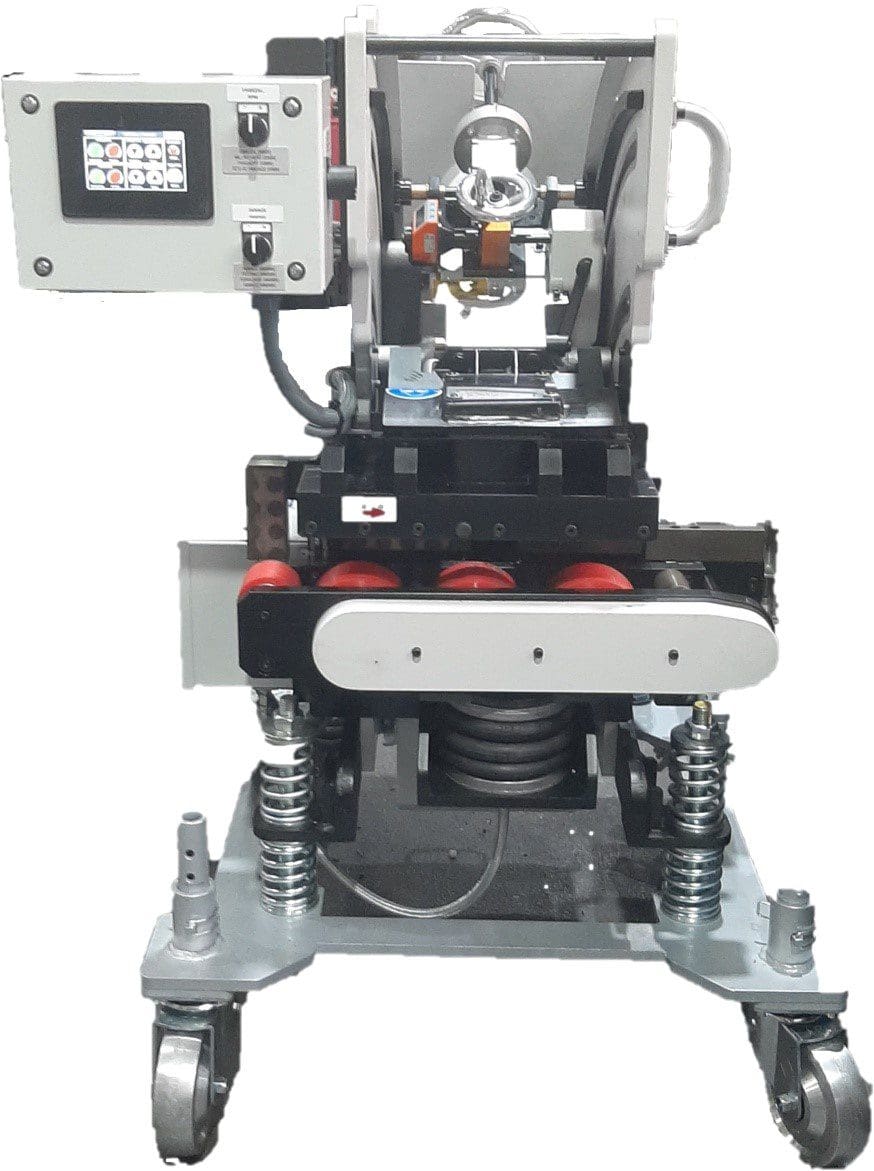

The MILLING machine for sheetplates / strips model CHP-30G mills with carbide inserts a bevel to a plate (or plate piece). The milling tool rotates with appr. 550 r.p.m. and has a separate drive for the feed of the material or transport of the machine along the sheet. The milling tool is dia. 50 mm. with 5 inserts.

  • Beveling with AUTO-feeding of the plate or along the plate.
  • Maximum beveling length of 35 mm.
  • Sheet thickness 5 -50 mm.
  • Angular position 15° till 70° adjustable.
  • Working height variable.
  • Mills the bevel with carbide inserts.

Extensive information

For more information about our products, please contact us . We offer a wide overview of brochures and photo material for orientation.
We also develop customized 'specials', in line with your wishes and requirements.
Discover the possibilities of our products and come without obligation to contact with us. Contact us or request a quote .
